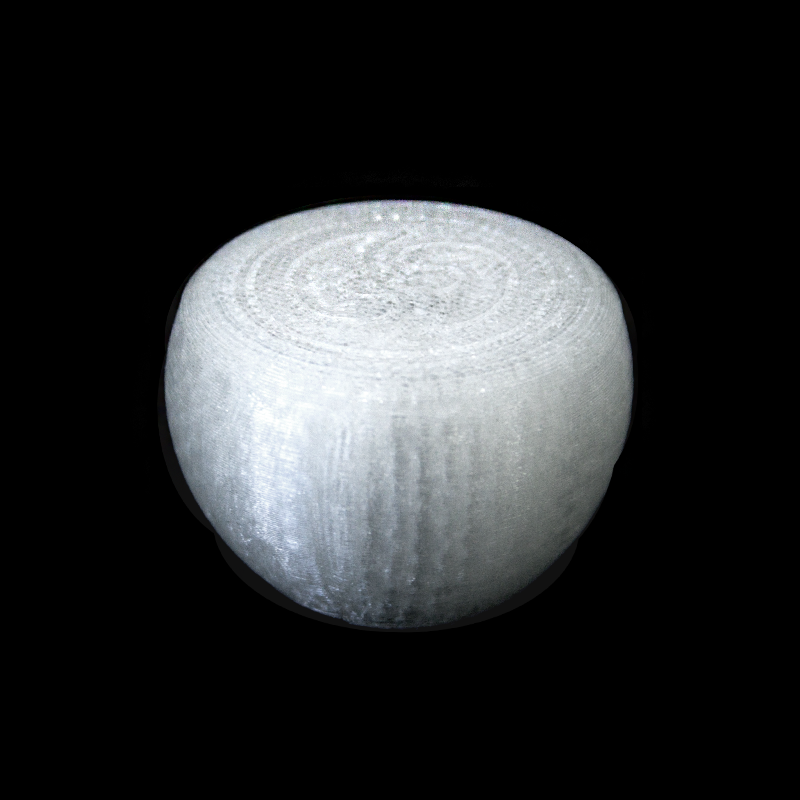

club knob - magnetic flux

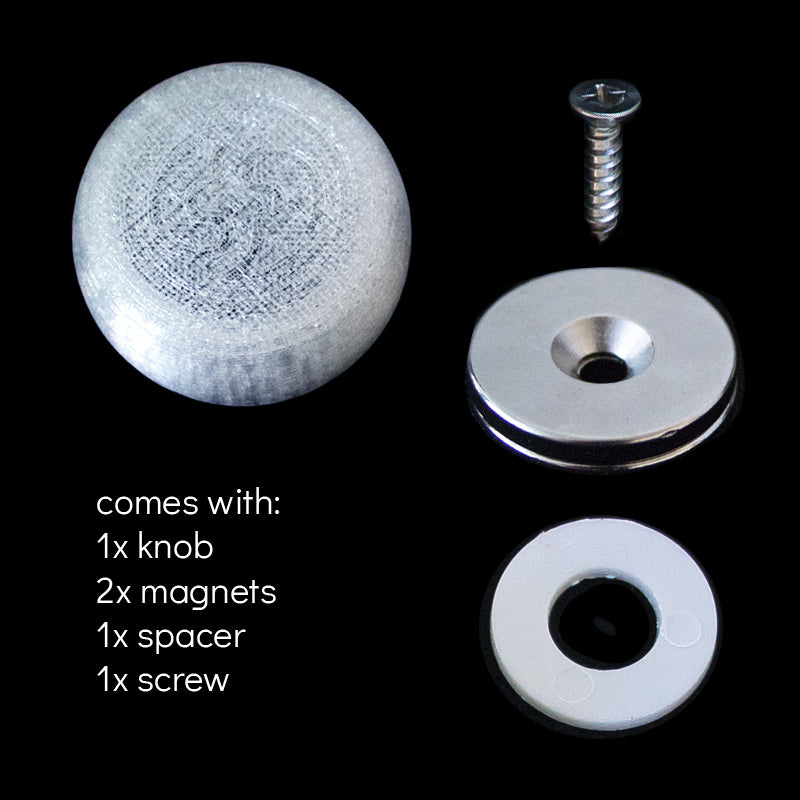

• 1x magnetic flux vision club knob
• 2x countersunk Neodymium magnets
• 1x spacer
• 1x #8 3/4" stainless self tapping Phillip screw

Features

• Flowtoys magnetic club knobs are designed for maximum flux (magnetic force) and contain 2 x 1" x 1/8" countersunk   Neodymium magnets
• The polarity is reversible and you can remove one magnet to reduce the weight and strength

Warning about replacing club knobs

In order to maximize the amount of light near the knob, the screw is very short and can easily be stripped out. Please be careful to use great force when screwing the knob in (you read that right - use force). You should be pushing it in hard, while screwing so it does not act like a drill. Be sure to screw it in deeply/firmly, so it does not easily rip out during use.

Minimize how often you replace the screw/knob. It is not intended to be swapped out frequently. While we have had success with 20+ replacements, it will eventually wear out the hole and the club will need to be sent in for servicing.

Please ONLY use the screw that comes with the flowtoys club knob - other screws may be too long and may drill through the circuit board and damage the top LED. Please note that we cannot warranty your board in full if this happens.

Polarity

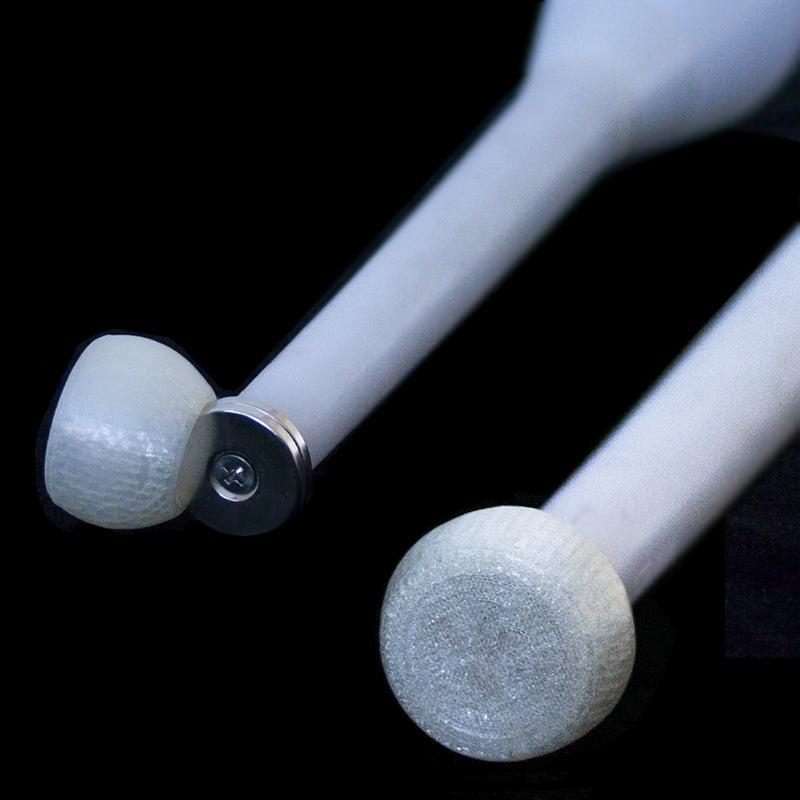

There are many potential combinations of polarity possible, but most of them would require keeping track of which club is which. To make them universal, we have chosen South pole for the the caps, which are not reversible and recommend North for knobs, which are reversible, so all caps attract all knobs, but repel each other, so you can not connect cap to cap, but the all-north knobs DO attract each other quite well on the sides and you can even hang 3 clubs by their knobs from the knob of a fourth!

Magnetic Flux

Flowtoys magnetic flux club caps are designed for maximum flux (magnetic force), with a compromise in weight and ease of use.

• Magnetic knobs weigh 32g (with screw), while standard knobs weigh 6g (with screw)
• We include 2 magnets for maximum flux, but we also include a spacer that can replace one of the magnets to reduce the weight by 10g, and make it weaker if desired.
• Magnets are brittle and can chip or shatter on impact with hard surfaces; avoid juggling over hard surfaces like concrete, stone or tile..
• We highly recommend a capsule remote for use with clubs with magnetic caps. You can still do all the normal navigation through the cap with some practice/effort, but it is harder.

Tech Specs

• Screw: #8 | 3/4" | 18-8 Stainless Flat Head Phillip Self Tapping Screw | Type A

Magnet properties

The knob's magnet is a N42 Strong Neodymium Magnet with the following dimensions and polarity:

• 1" diameter x 0.125" thick with 0.355" x 0.195"
• 82 degree taper countersunk hole (#8 countersink)
• countersunk on opposite poles :: reversible

The flowtoys forever flow lifetime warranty is intended to enable you to practice, play, party and perform with your flowtoys-made props without worrying about breaking them, and to freely find your flow. Here's how it works:

• Defects in materials or workmanship are covered for life.
• You'll have to send the part back to us and cover return shipping, but we'll replace it for free.
• A totally amazing feature of our warranty :: You can send back any flowtoys-made prop at any time, in any condition, and get 50% credit towards any flowtoys purchase. Click here for details on our upgrade program.
• Non-electronics (leashes, tubes, grip, shells, caps, club parts etc.):

  • intended use and not wear & tear = free repair or replacement of the relevant part for life
  • non-intended use = half price repair or replacement of the relevant part
  • wear & tear = half price repair or replacement of the relevant part
• <Click here for more details on flowtoys' forever flow lifetime warranty.
