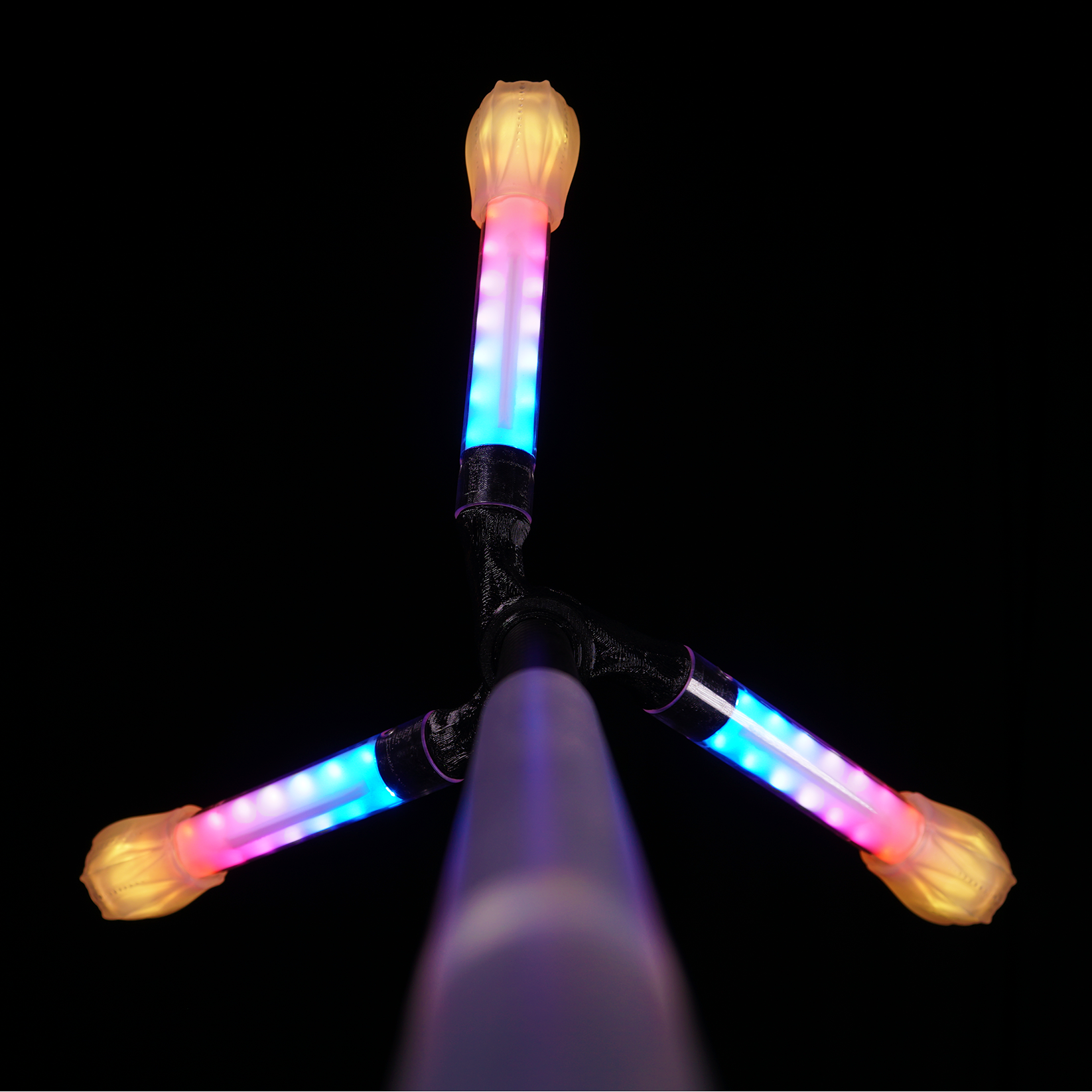

trikon dragon hubs - choose lights

1 week lead time

Your Trikon dragon hub is 3D-printed in-house and printers can be fussy. Even if you choose Express shipping, your staff may not leave our factory until a week after you order it! If you are in a rush, please contact us before ordering. We'll do our best to make magic happen.

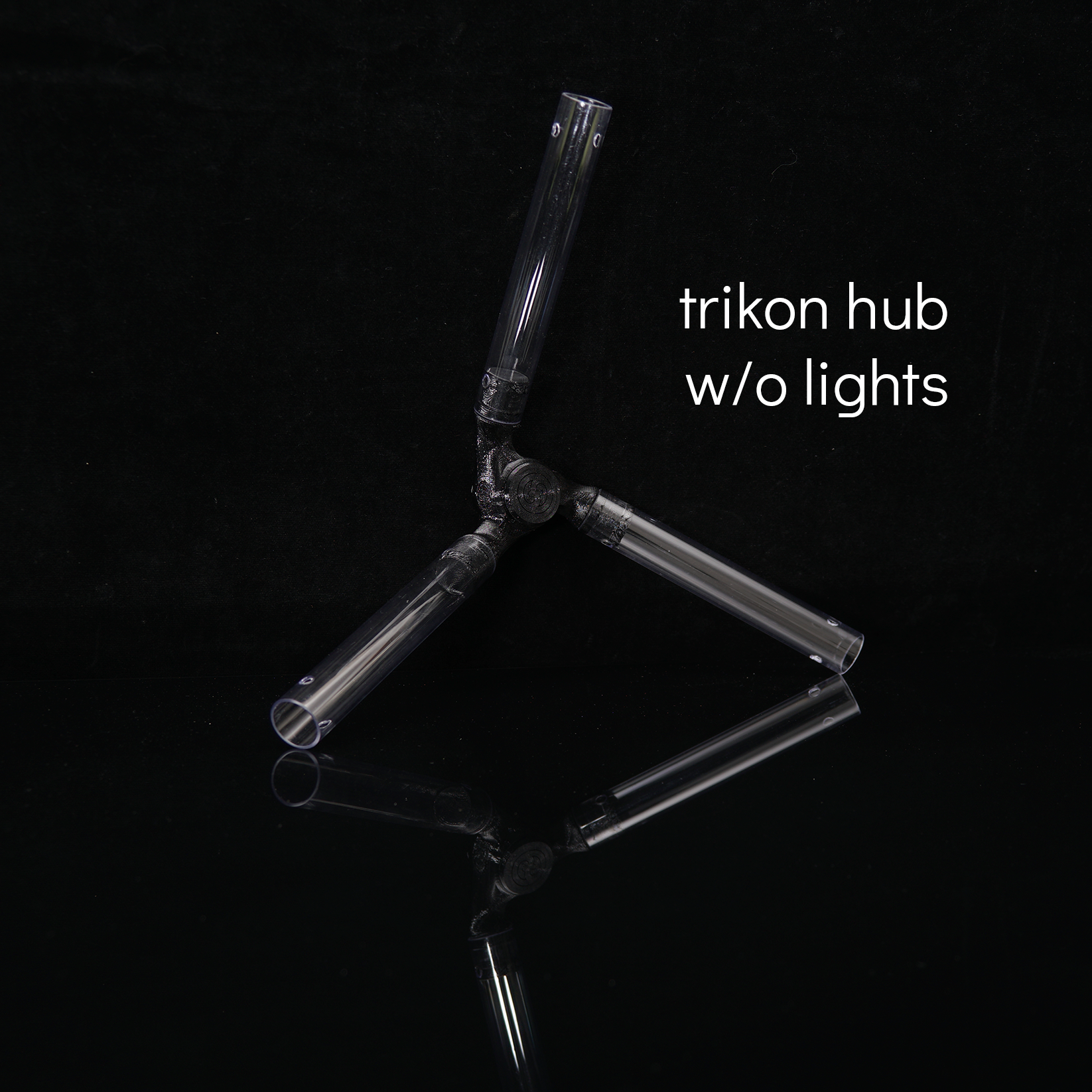

• 2x 3D-printed Trikon hubs with 6 polycarbonate tubes and appropriate hub-shaft adaptors

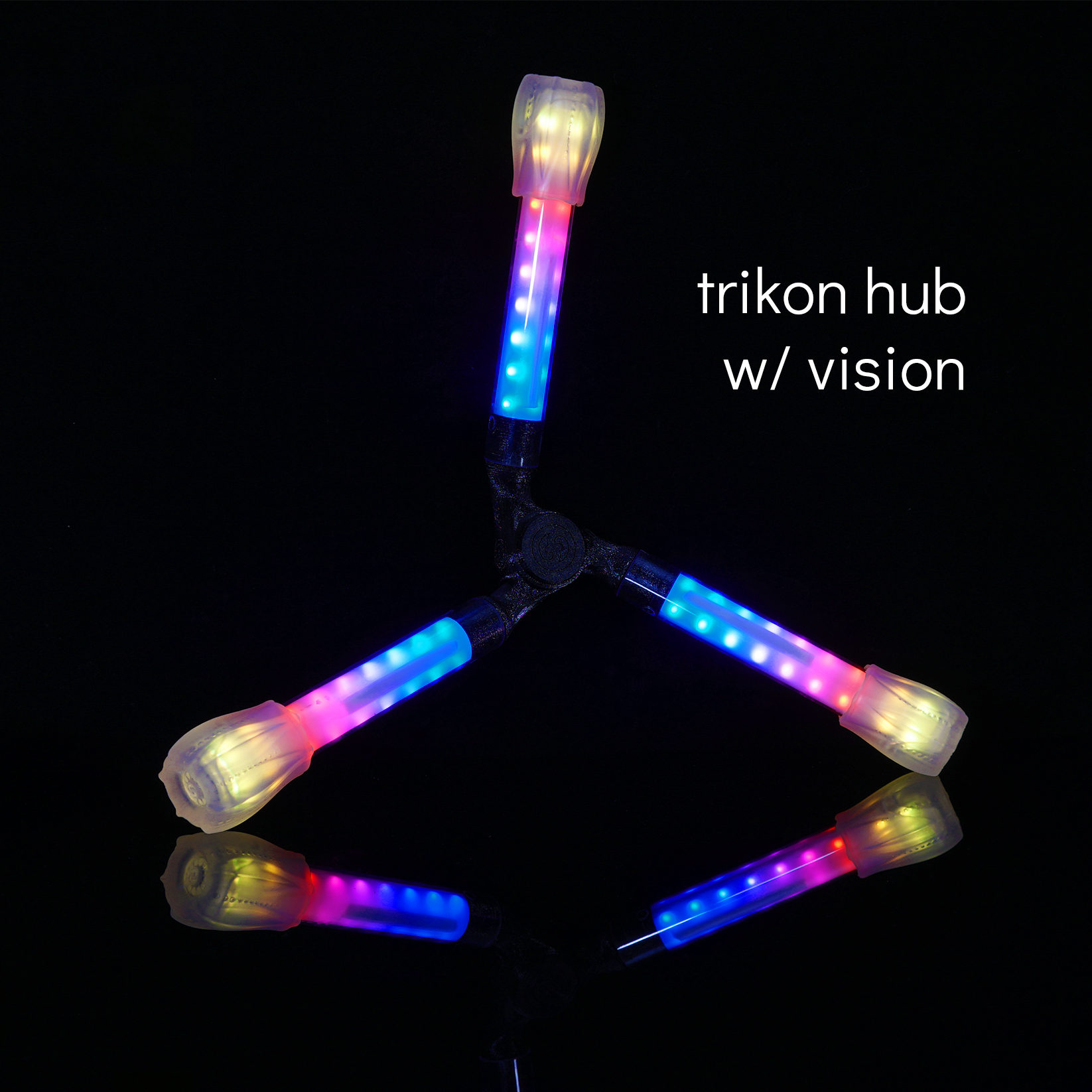

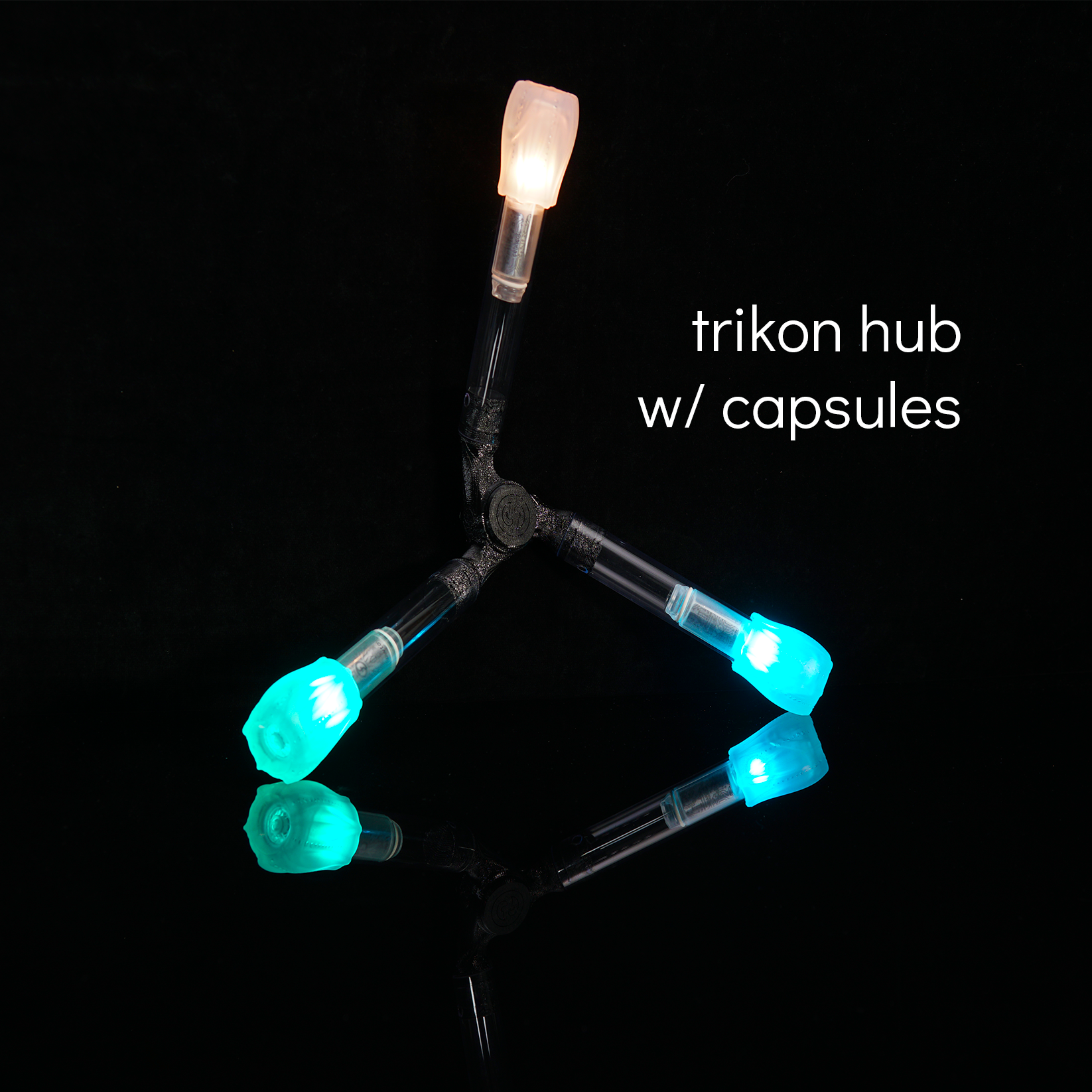

• 6x flowtoys light engines of your choice (vision, capsule 2, flowlight FS)
• 6x usb cables and usb charger per order for capsules and vision; 6 AAAs and charger for flowlights
• 6x flowcaps with appropriate adaptors
• 1x hex key
• many moments of buttery dragon joy and wows aplenty!

Shaft diameter

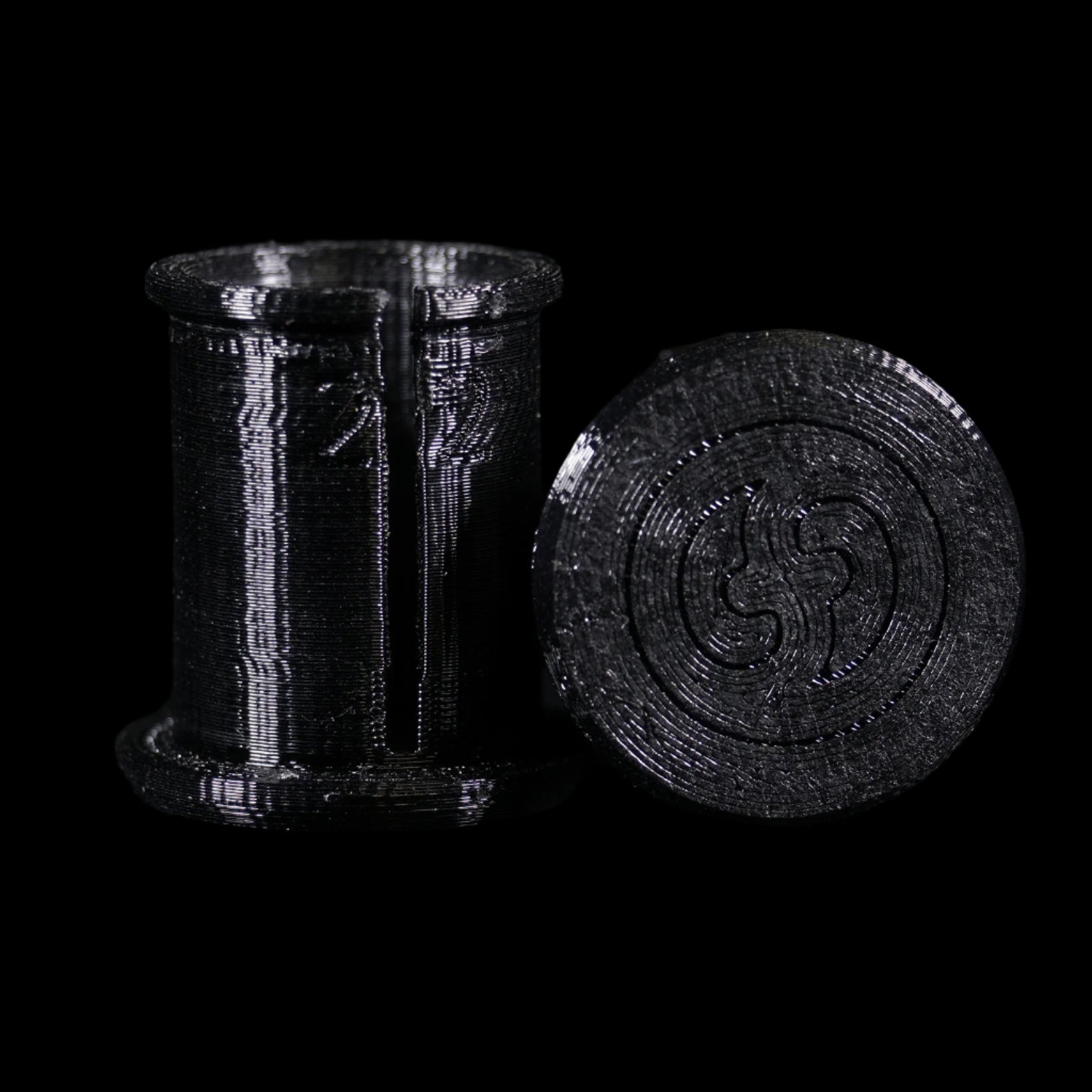

The trikon hub is designed to fit on 1" (25mm) or 7/8" (22mm) shafts. Please choose your shaft diameter and we will provide the appropriate shaft adaptor.

Using trikon hubs with flowtoys 15mm composite staves

This combination does not work well for everyone, for 2 main reasons:

• Roll: The shaft diameter of a dragon staff makes a huge difference on how fast it rolls, or travels along your body. Most people prefer 22mm. 15mm makes for a very slow roll that some people love, but is too slow for most.
  DIY solution: Add more grip! Wrap more layers of grip to increase your shaft diameter.


• Twist: The tubes on the ends of most flowtoys 15mm composite staffs are held on with rubber 3D-printed buttons and can be removed by twisting. The trikon hubs will twist the tube when dropped, and the tube can then fall off. Also the repeated twisting will wear out the buttons.
  DIY solution: You can secure them with tape as a temporary solution, drill screws into the buttons to make them secure, or order screw-connectors from flowtoys and drill them in yourself.



Other options

• If you already have the hubs, you can get appropriate shafts for them here.
• If you haven't bought them yet, consider getting a complete trikon dragon.

Features

• unique conical dragon design looks and feels amazing, creates extra clearance, gives a better view from all angles, and stands up on its own

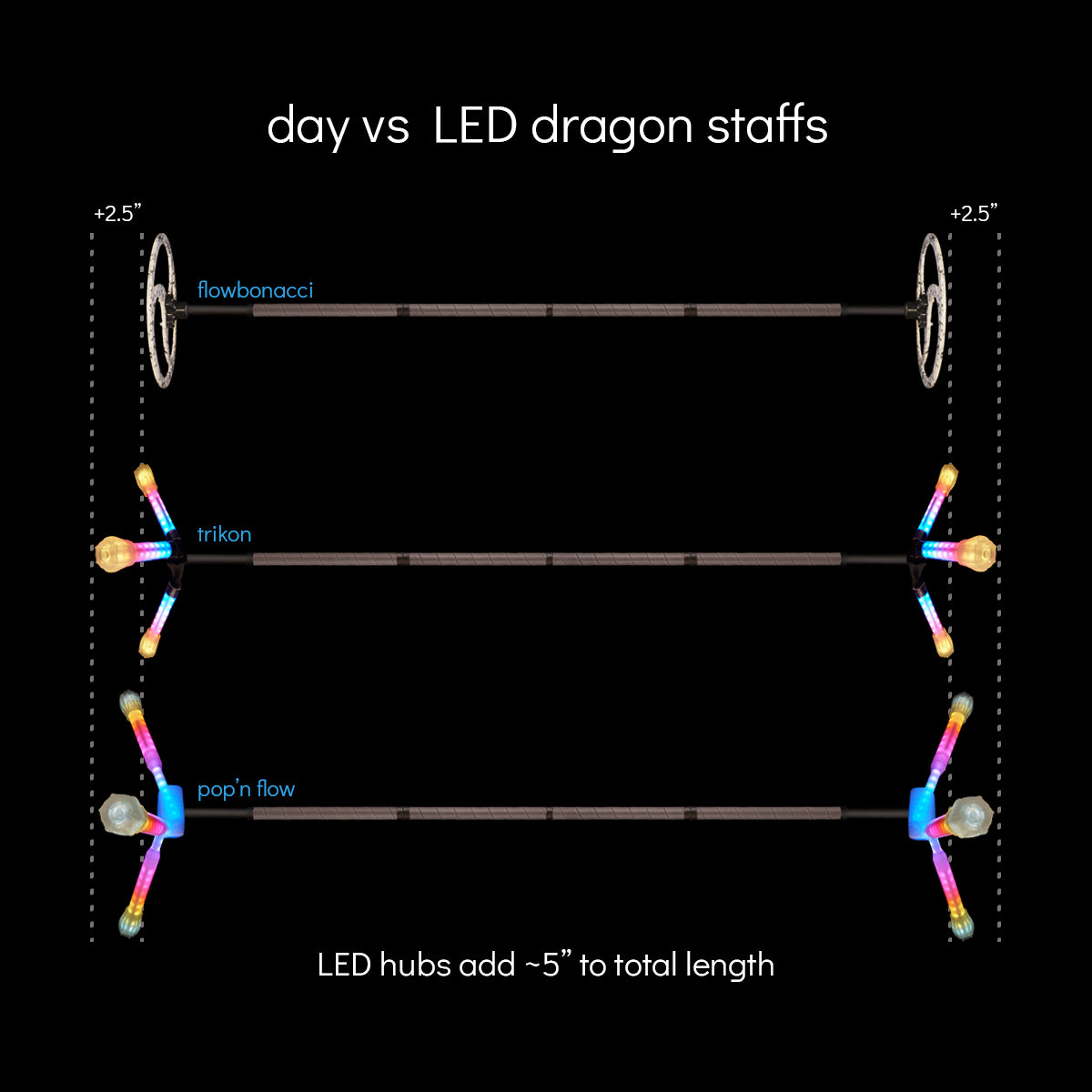

• outward angled spokes provide an extra 65mm/2.5" of clearance on each end, enabling a shorter shaft for better handling

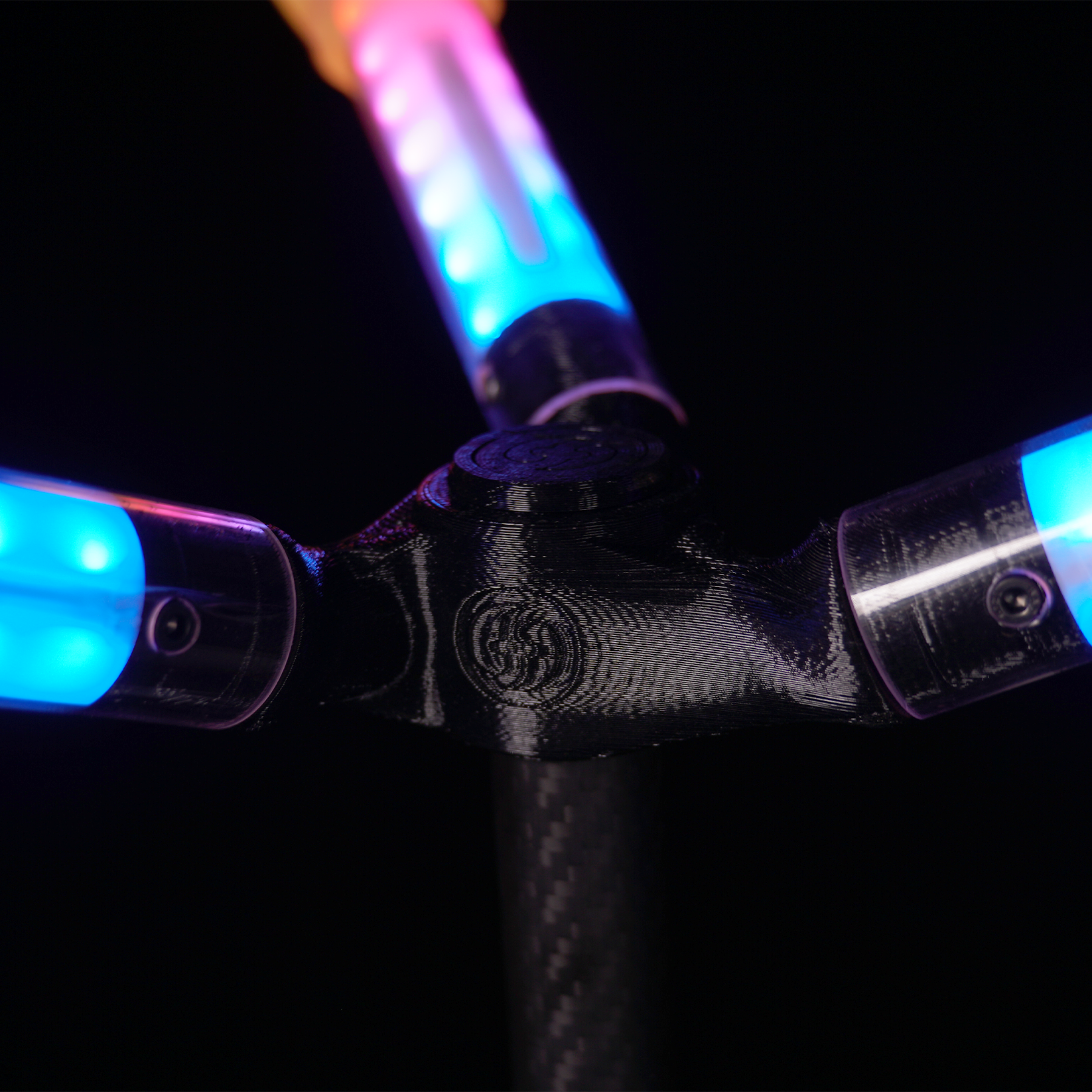

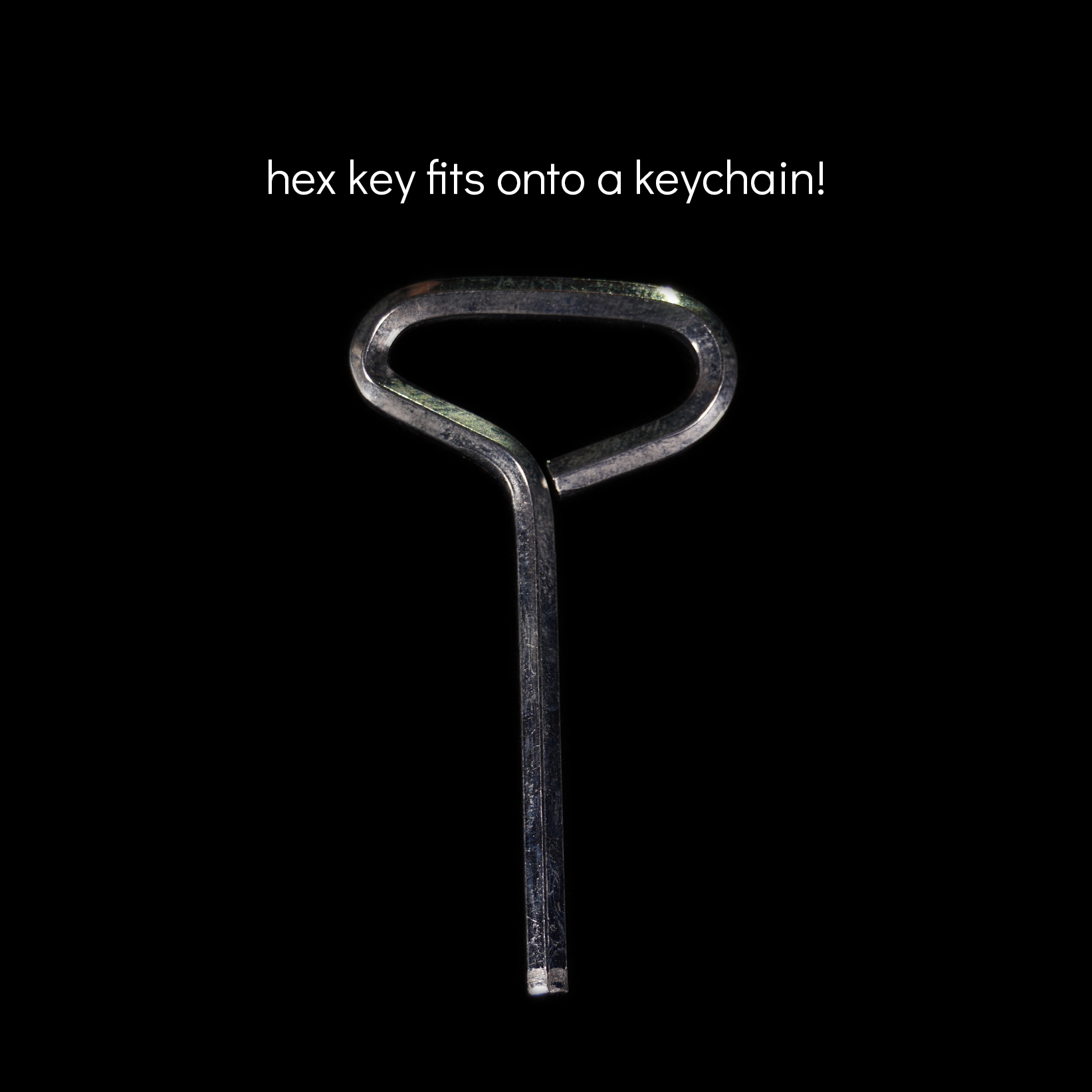

• 3D-printed TPU hubs are indestructible and can flex to absorb impacts, and can be tightened with an internal bolt and the included keychain hex-key (4mm / 5/32")
• super durable polycarbonate tubes
• soft silicone flowcaps
• super durable 3d-printed hubs with unique conical design
• all components custom-made to our tight tolerances and specifications

Tech Specs

• Spoke length (from center of shaft): 210mm/8.25" (can be longer if desired)
• Spoke tube diameter: 25mm/1"
• "Disc" diameter: 410mm/16" (can be larger if desired)
• Single hub weight: vision = 370g, capsules = 350g, flowlights = 365g
• Battery life: 1-12 hours, depending on mode and brightness settings.

The flowtoys forever flow lifetime warranty is intended to enable you to practice, play, party and perform with your flowtoys-made props without worrying about breaking them, and to freely find your flow. Here's how it works:

• Defects in materials or workmanship are covered for life.
• You'll have to send the part back to us and cover return shipping, but we'll replace it for free.
• A totally amazing feature of our warranty :: You can send back any flowtoys-made prop at any time, in any condition, and get 50% credit towards any flowtoys purchase. Click here for details on our upgrade program.
• Electronics (battery, board, button, accelerometer):

  • no physical damage and <2 years = free repair or replacement of the relevant part
  • physical damage/ unintended use = half price repair or replacement of the relevant part
  • > 2 years = battery replacement fee, or half price repair or replacement of the relevant part
• Non-electronics (leashes, tubes, grip, shells, caps, club parts etc.):

  • intended use and not wear & tear = free repair or replacement of the relevant part for life
  • non-intended use = half price repair or replacement of the relevant part
  • wear & tear = half price repair or replacement of the relevant part
• <Click here for more details on flowtoys' forever flow lifetime warranty.
