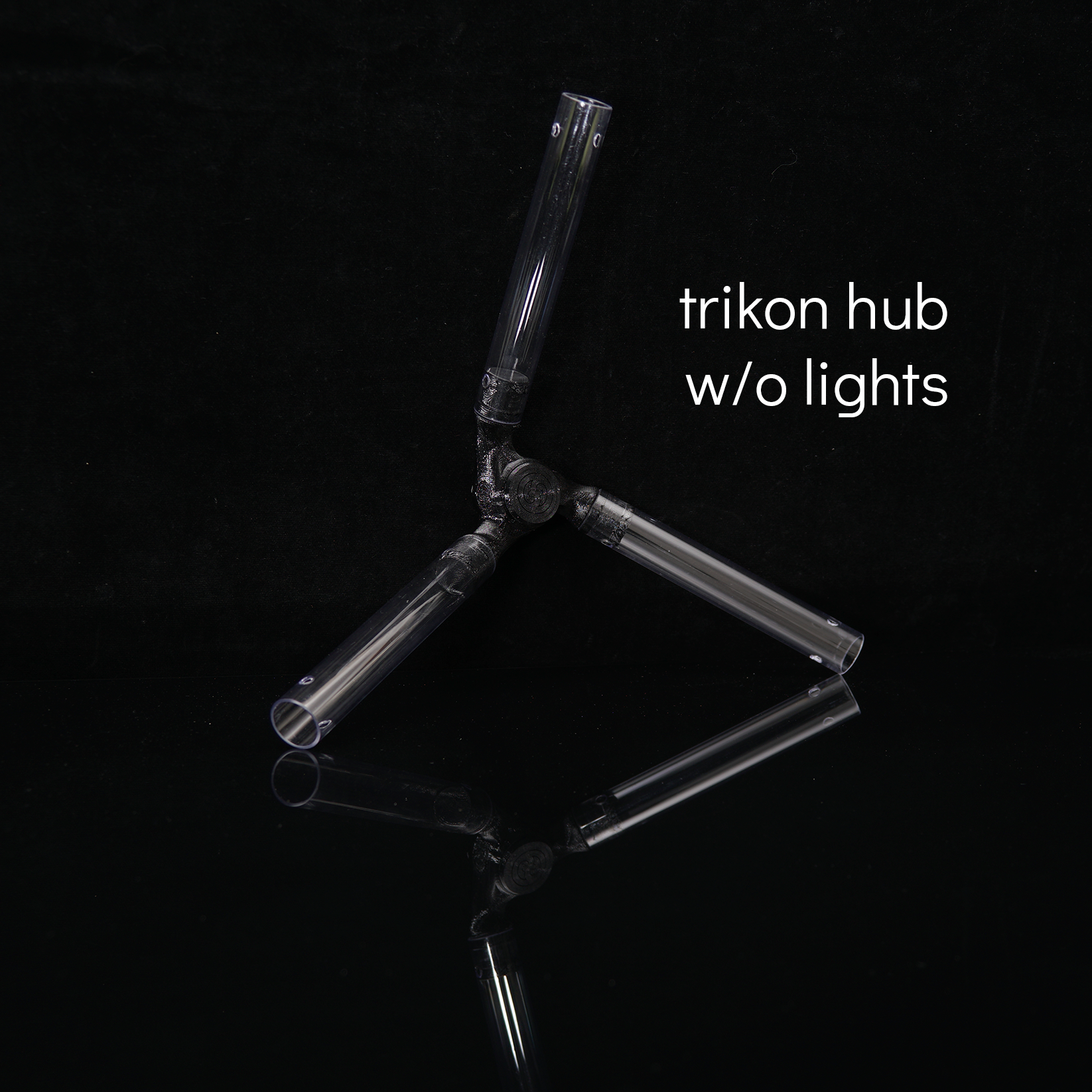

trikon dragon hub w/o lights

1 week lead time

Your Trikon dragon hub is 3D-printed in-house and printers can be fussy. Even if you choose Express shipping, your staff may not leave our factory until 1 week after you order it! If you are in a rush, please contact us before ordering. We'll do our best to make magic happen.

• 2x 3D-printed Trikon hubs with 6 polycarbonate tubes and appropriate hub-shaft adaptors
• optional :: 6x flowcaps with appropriate adaptors

• 1x hex key
• many moments of buttery dragon joy and wows aplenty!

Flowcaps

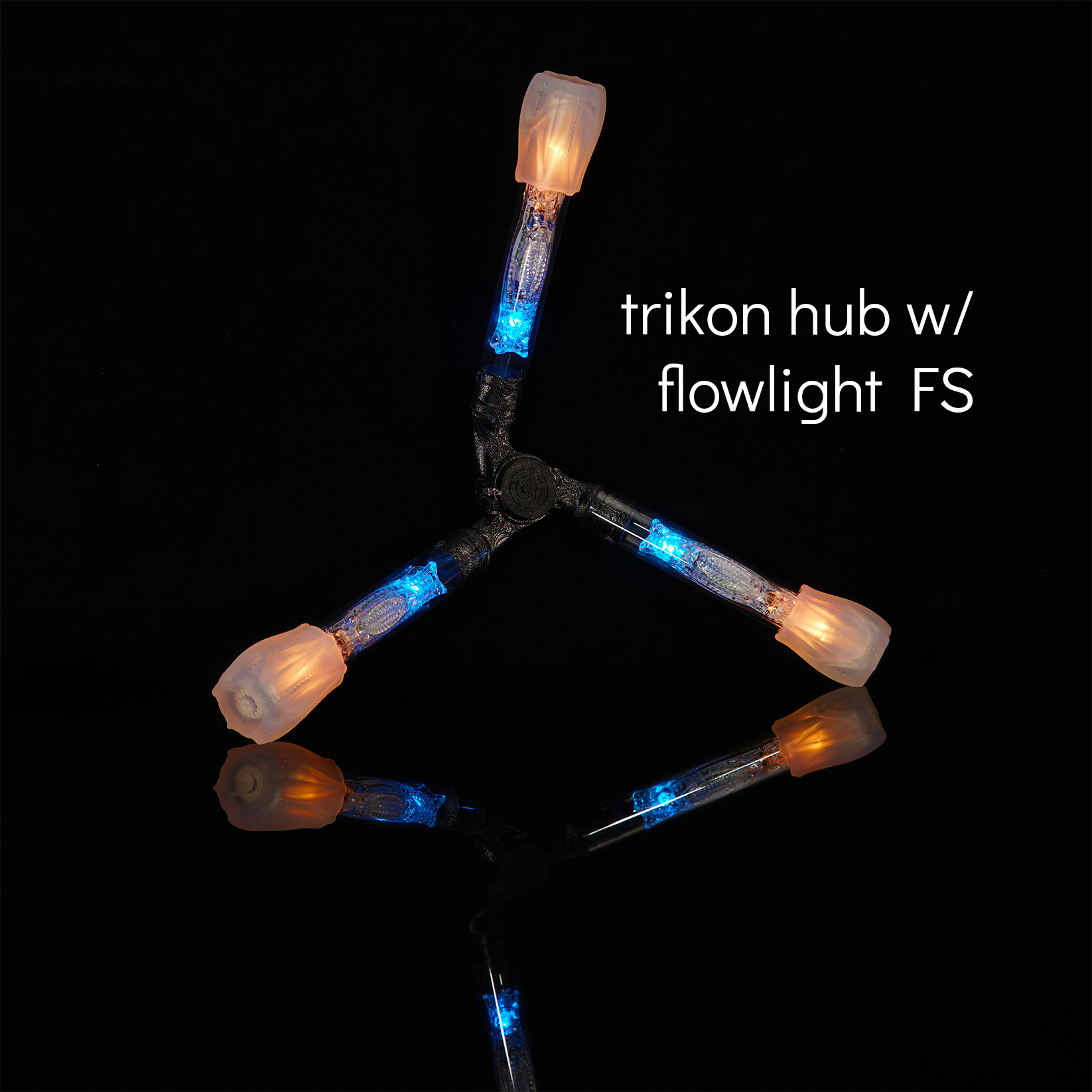

If you already have flowcaps, you can get this hub w/o caps. If you need caps, please tell us which light units you're using, as you will need flowlight adaptors if you're using flowlights.

Shaft diameter

The trikon hub is designed to fit on 1" (25mm) or 7/8" (22mm) shafts. Please choose your shaft diameter and we will provide the appropriate shaft adaptor for your trikon hub.

Using trikon hubs with flowtoys 15mm composite staves

This combination does not work well for everyone, for 2 main reasons:

• Roll: The shaft diameter of a dragon staff makes a huge difference on how fast it rolls, or travels along your body. Most people prefer 22mm. 15mm makes for a very slow roll that some people love, but is too slow for most.
  DIY solution: Add more grip! Wrap more layers of grip to increase your shaft diameter.


• Twist: The tubes on the ends of most flowtoys 15mm composite staffs are held on with rubber 3D-printed buttons and can be removed by twisting. The trikon hubs will twist the tube when dropped, and the tube can then fall off. Also the repeated twisting will wear out the buttons.
  DIY solution: You can secure them with tape as a temporary solution, drill screws into the buttons to make them secure, or order screw-connectors from flowtoys and drill them in yourself.



Other options

• If you already have the hubs, you can get appropriate shafts for them here.
• If you haven't bought them yet, consider getting a complete trikon dragon.

Features

• unique conical dragon design looks and feels amazing, creates extra clearance, gives a better view from all angles, and stands up on its own
• outward angled spokes provide an extra 65mm/2.5" of clearance on each end, enabling a shorter shaft for better handling
• 3D-printed TPU hubs are indestructible and can flex to absorb impacts, and can be tightened with an internal bolt and the included keychain hex-key (4mm / 5/32")
• super durable 3d-printed hubs with unique conical design
• super durable polycarbonate tubes
• soft silicone flowcaps (optional)
• all components custom-made to our tight tolerances and specifications

Tech Specs

• Spoke length (from center of shaft): 210mm/8.25" (can be longer if desired)
• Spoke tube diameter: 25mm/1"
• "Disc" diameter: 410mm/16" (can be larger if desired)
• Single hub weight: vision = 370g | capsules = 350g | flowlights = 365g
